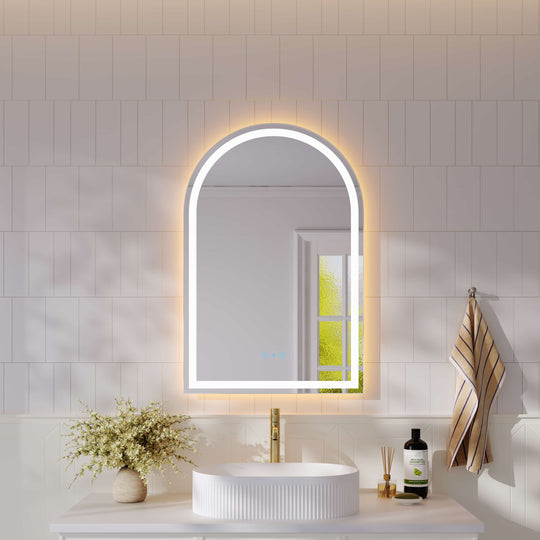

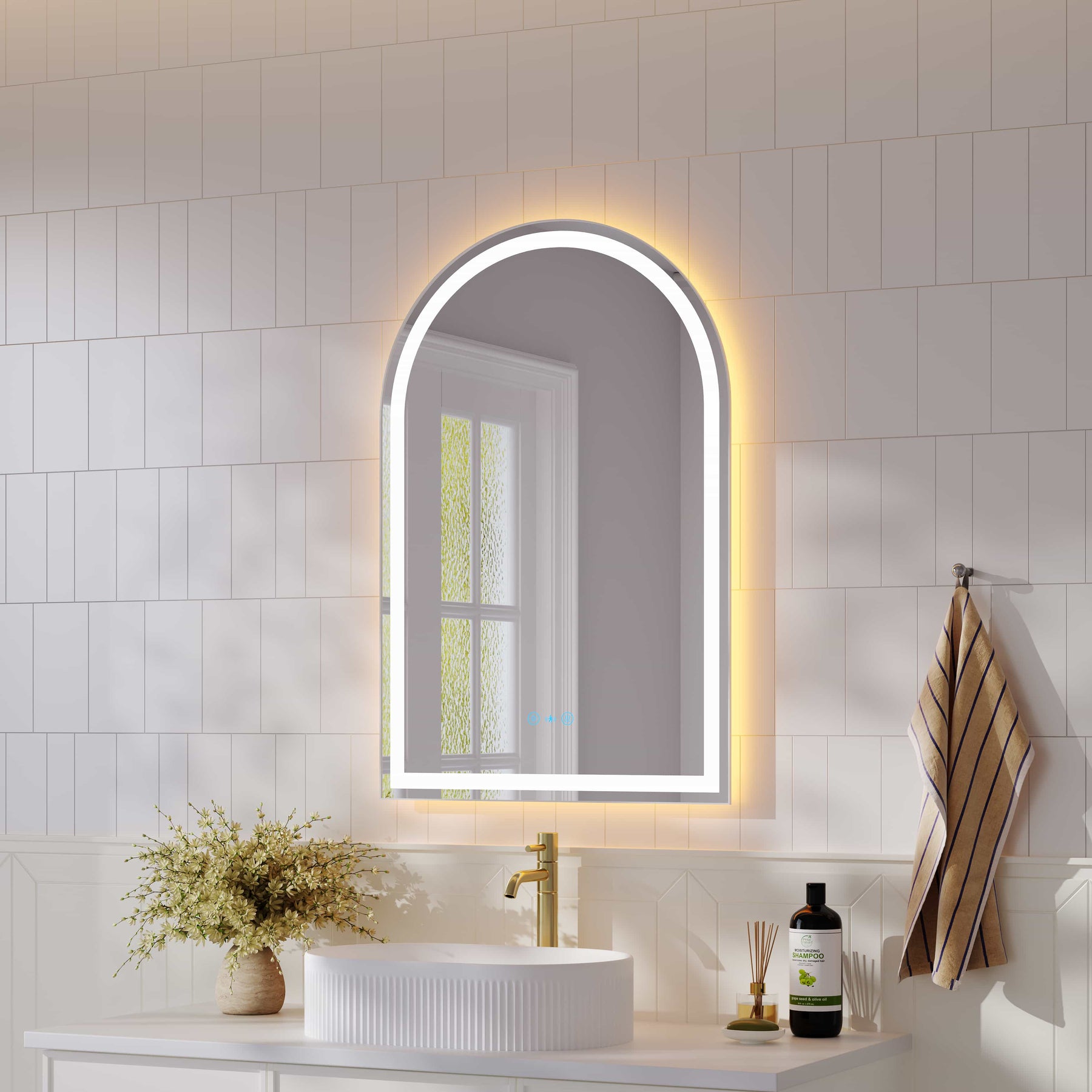

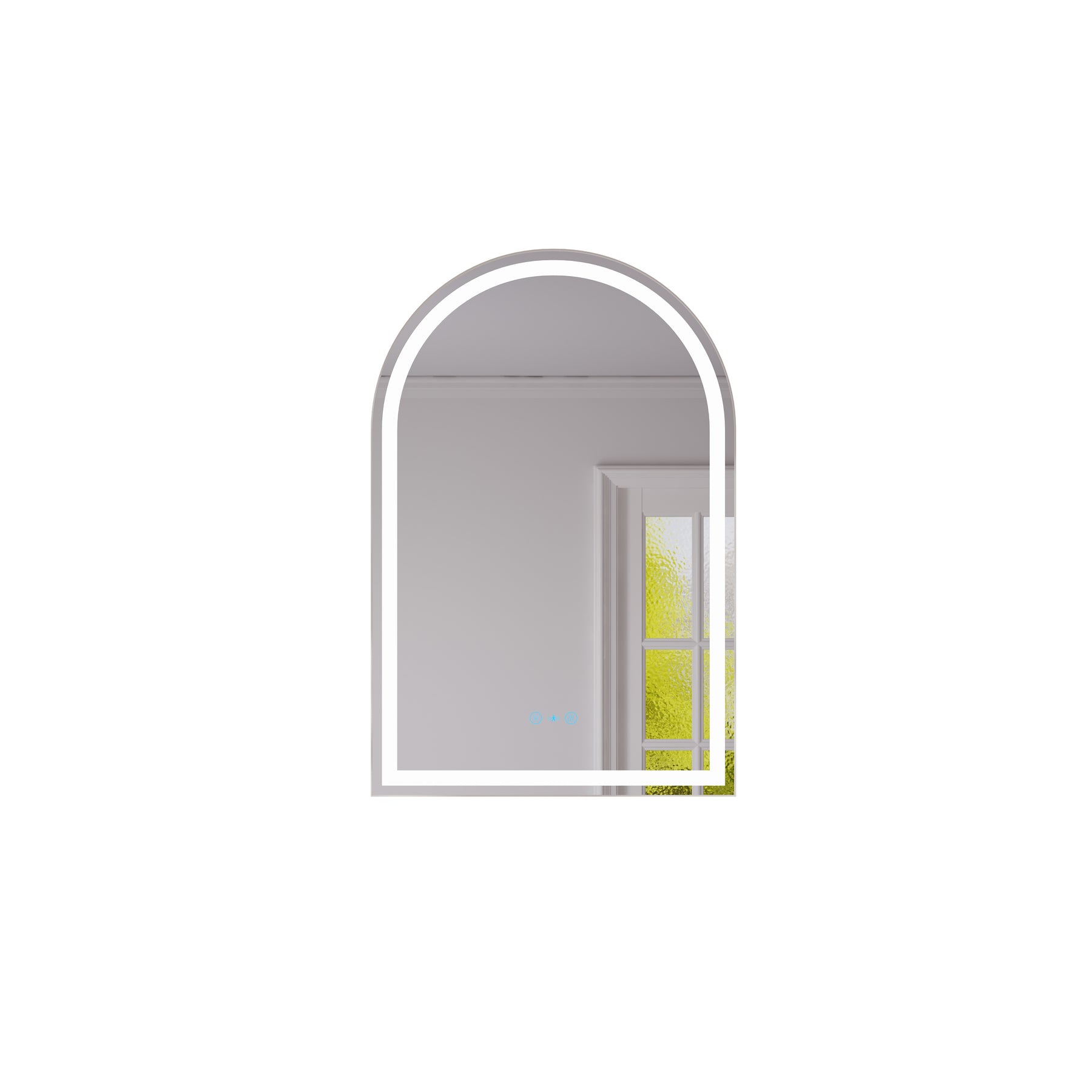

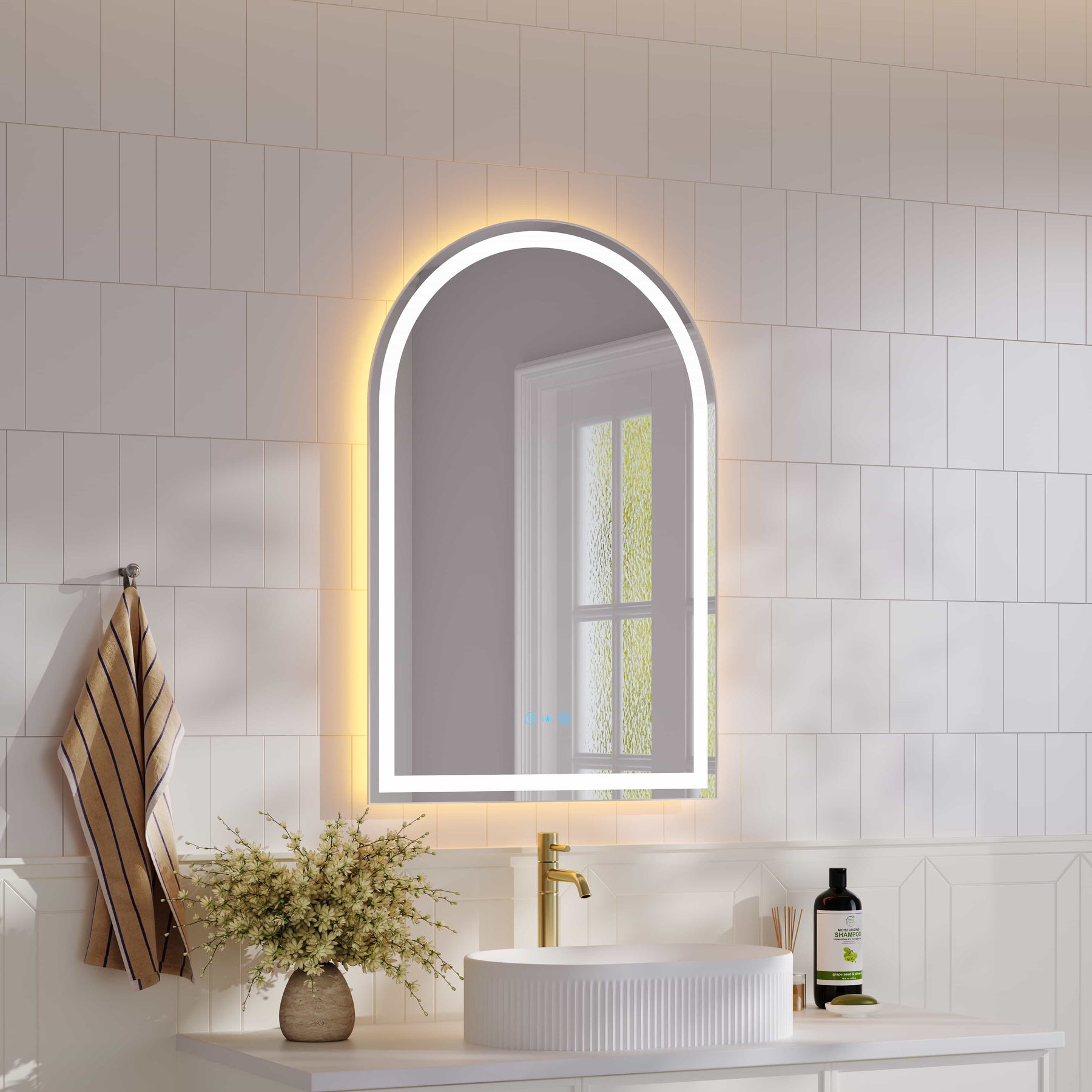

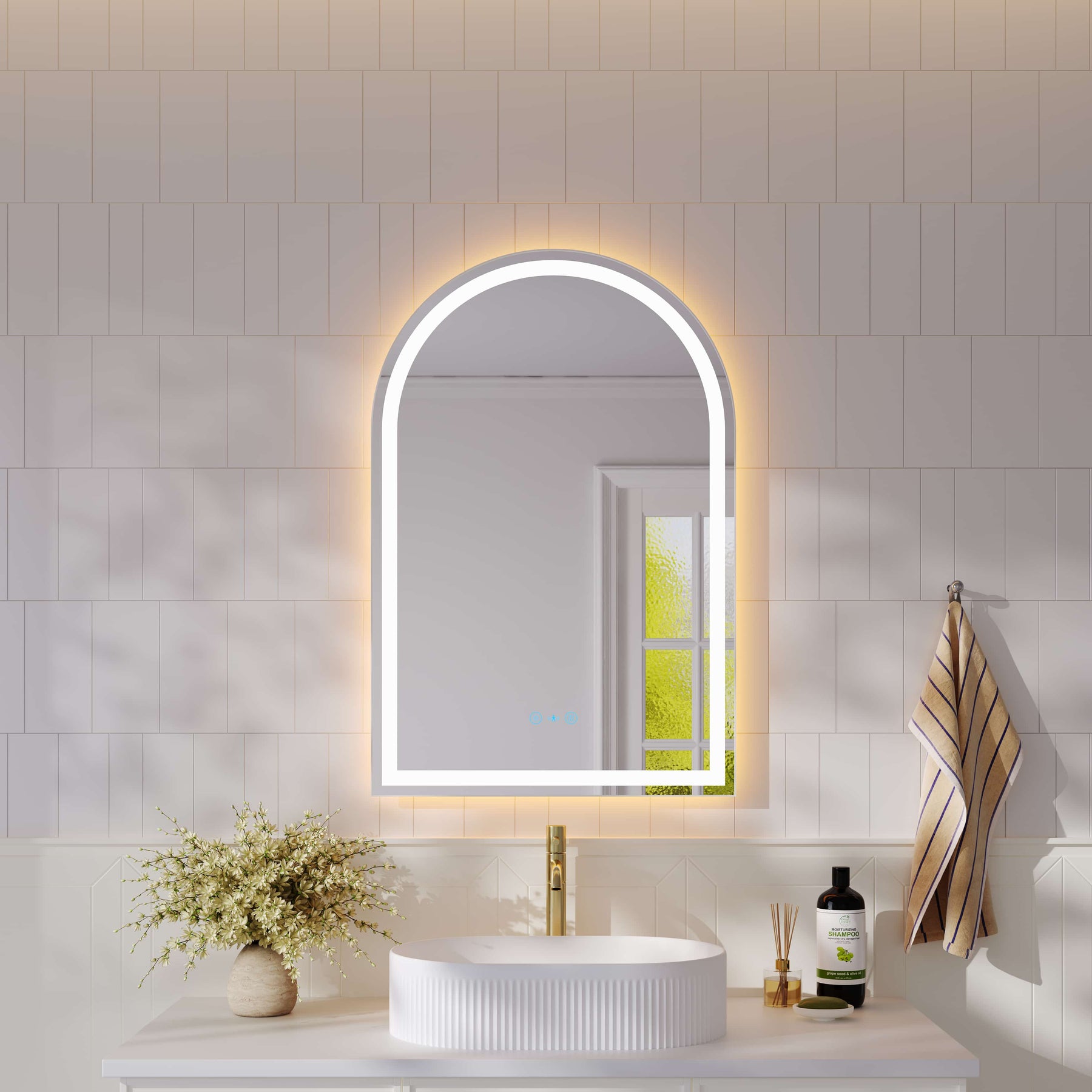

The Freya Series LED Arch Mirror embodies refined elegance with its frameless 30mm-thick arch (“racetrack”) design, delivering dual front and back illumination through frosted-edge glass. Engineered with advanced LED lighting, radar motion sensing, and SAA-certified defogging, Freya offers the perfect blend of style and functionality for modern spaces.
Key Features
1. Copper-Free Safety Mirror
-
5mm third-generation copper-free mirror with outstanding clarity
-
Laminated explosion-proof safety film for enhanced protection
2. Advanced 2835 LED Lighting – Adjustable Color Temperature (2700K–6500K)
-
120 LEDs/meter (2835 series) for uniform front and back illumination
-
CRI > 80 for natural and pleasant skin tone rendering
3. Dual-Button Smart Control + Motion Sensor
-
Light Button: Quick tap to cycle warm, neutral, cool tones
-
Memory Function: Saves last lighting setting after 5 seconds
-
Defogger Button: Quick tap to toggle defogger; long press (≥3 sec) to enable/disable radar sensor
-
Motion Sensor: Detects presence within 1.5–2m; auto-off ~60s after no movement
-
Energy-Saving Mode: Automatically turns off light and defogger after 1 hour of inactivity
-
Switch Indicators: Off = soft white; On = blue light
4. Integrated SAA-Certified Defogging System
-
NuoLiang SAA-certified 220V defogger with 1-hour auto shutoff
5. Waterproof & Flame-Retardant Housing
-
Flame-retardant waterproof enclosure for enhanced safety
6. Certified Power Supply
-
JieLing SAA-certified 1.2m white three-core cable
-
Wide voltage support (AC 90–265V) with external relay
7. Installation Accessories
-
Includes 3-way quick connector, user manual, and installation guide
8. Robust Mounting System
-
Equipped with 2 × Z-shaped brackets and 2025 aluminum tube for secure mounting
Size & Power Rating
-

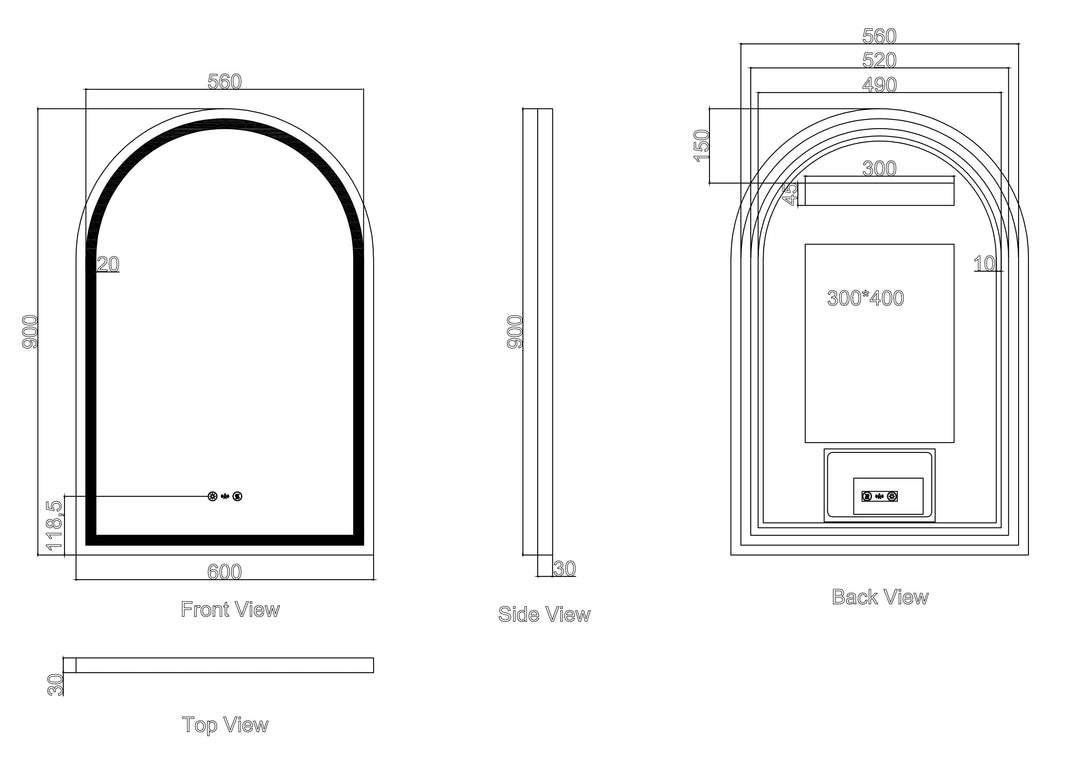

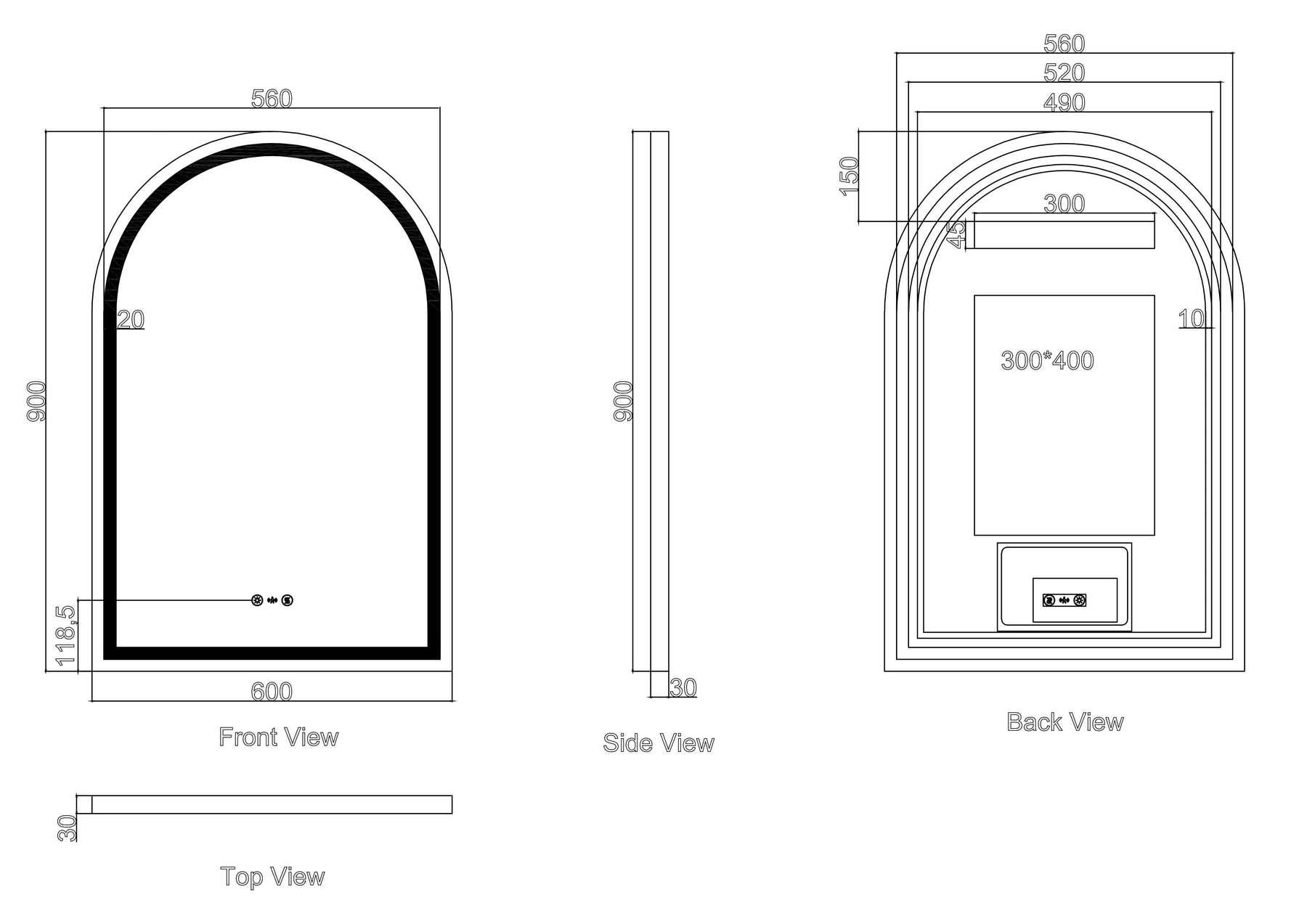

600 × 900 × 30mm – 36W (Defogger: 300 × 400mm)
A Perfect Fusion of Innovation & Minimalism
The Freya Series LED Arch Mirror elevates any interior with its frameless arch design, delivering dual illumination, intuitive smart controls, and certified safety. Ideal for both residential and commercial settings, it offers a flawless blend of modern aesthetics and daily convenience.
| Model: | FR-9050-A |
| Type: | LED Mirror |
| Dimensions(mm): | Width: 500 mm Height: 900 mm Thickness: 30 mm |
| Series: | Freya |
| Shape: | Arch |
| Certification: | SAA Approved |
| Material: | 5mm Copper-Free Silver Mirror with Safety Film |
| Installation type: | Wall Mounted |
| Switch type: | Dual Button + Motion Sensor Control |
| Led lighting: | Adjustable Colour Temperature: 2700K / 4000K / 6500K |
| Led strip: | Waterproof LED Strip |
| Power source: | Input: 220–240V, 50Hz |
