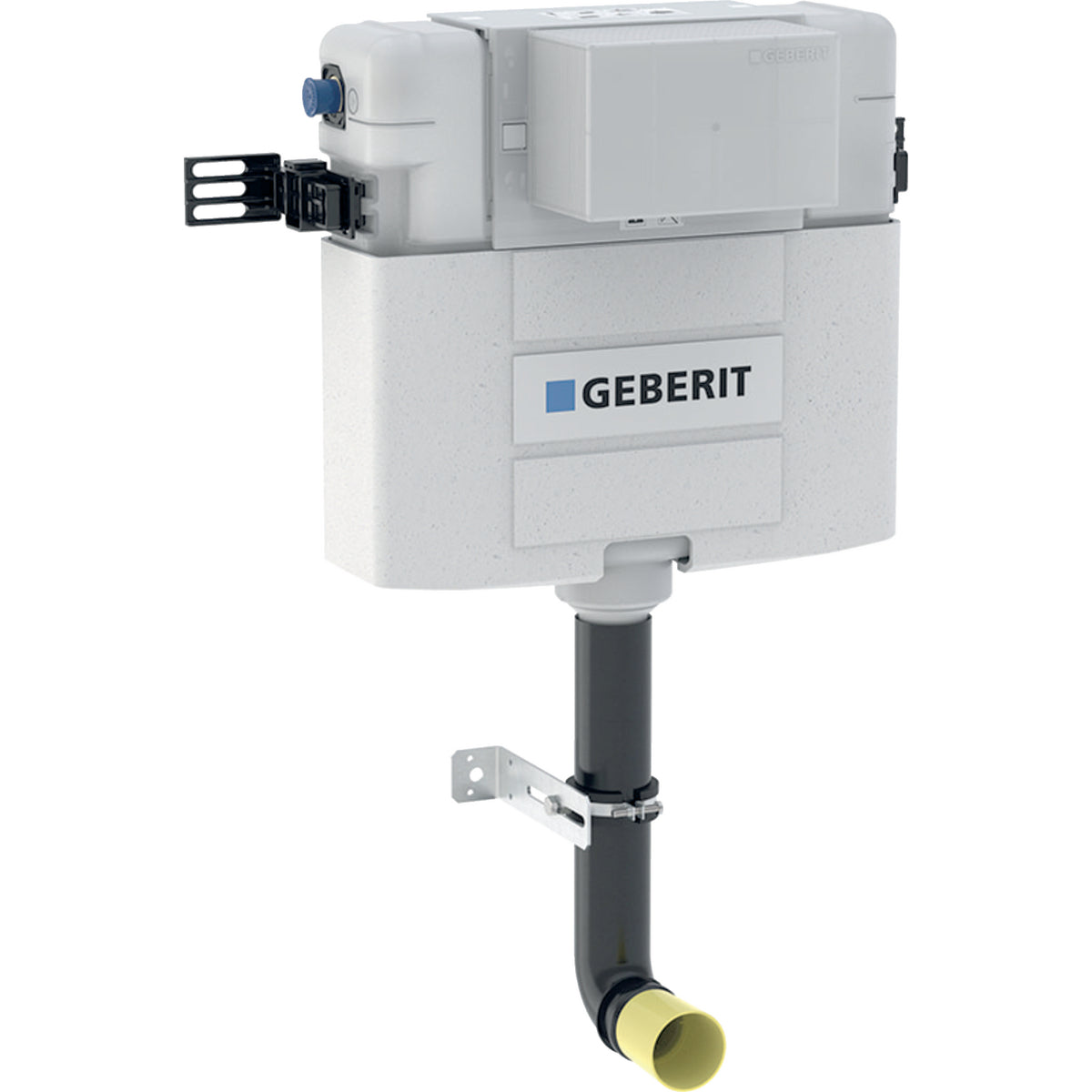

This taller configuration of the Geberit Alpha 12cm Cistern is designed for installations requiring elevated flush access. With its 109 cm installation height and concealed tank design, it combines practicality with sleek modern aesthetics for wall-faced floor pans.
Features
-
High-Strength HDPE Tank – One-piece blow-moulded tank crafted from high-density polyethylene, offering durability and leak resistance.
-
Dual Flush Performance – 4.5L/3L flushing system rated WELS 4 Star for water efficiency.
-
Flush Button Support – Compatible with all Alpha mechanical, pneumatic, and electronic buttons.
-
Flexible Installation – Works with both S-trap and P-trap setups.
-
Heavy-Duty Design – Rated up to 400 kg (AS 1172.1 compliant), ensuring safety and reliability.
-
Easy Maintenance Access – Integrated protection cover box for tool-free servicing.
-

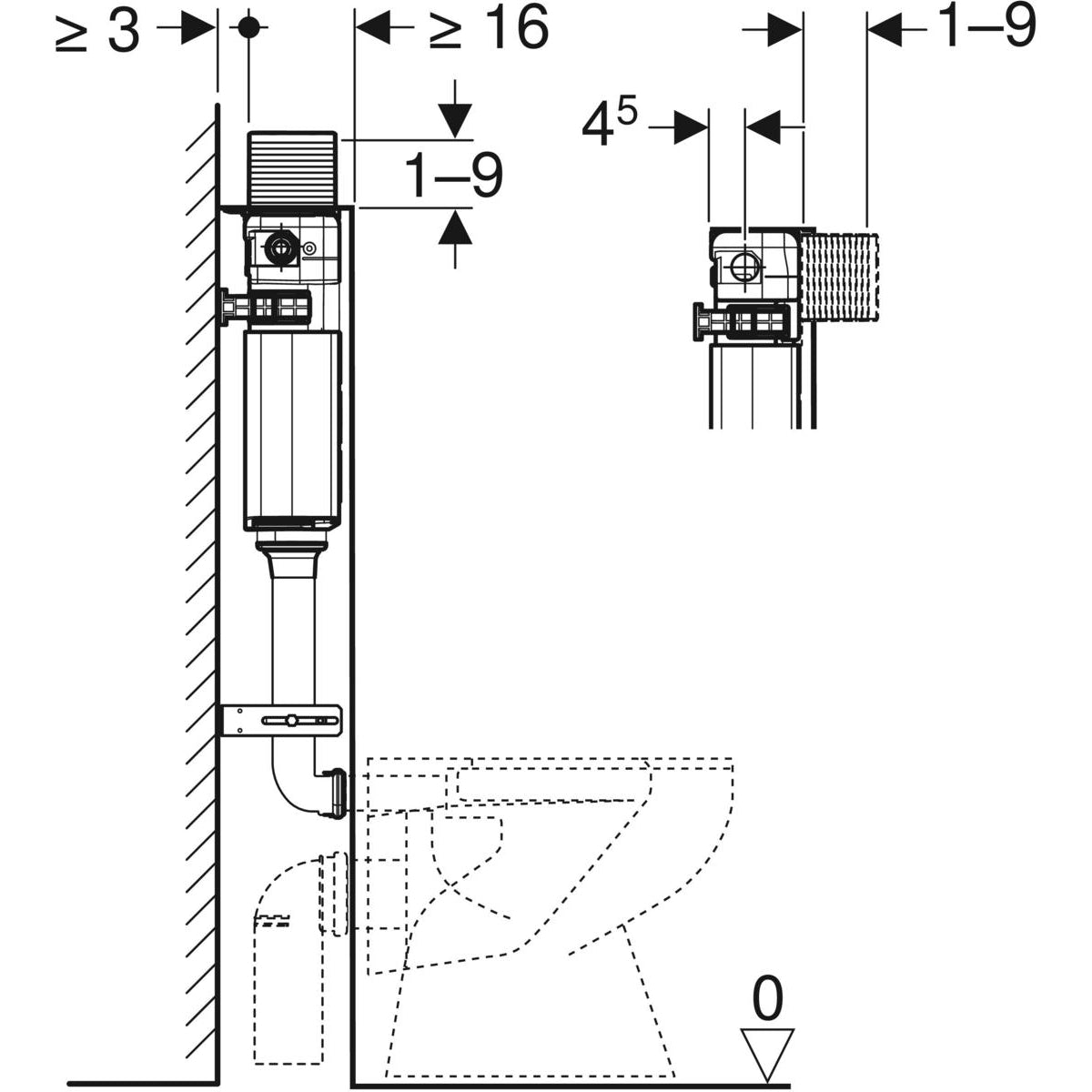

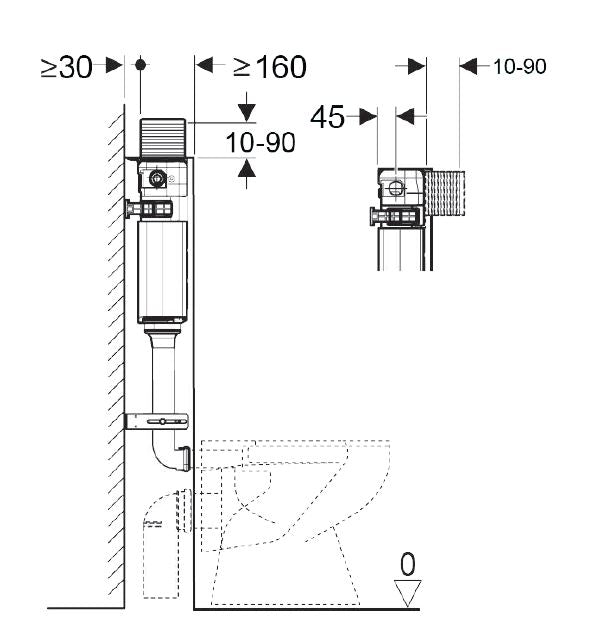

Standard Cavity Fit – Suits 90–110 mm wall cavities, simplifying in-wall installation planning.
Endnote
For taller installation requirements without compromising on performance, the Geberit Alpha 109 cm Cistern offers a flexible and future-proof solution.
| Model: | 224.039.00.1 |
| Type: | In-Wall Cistern |
| Series: | Alpha12 |
| Brand: | Geberit |
| Country of origin: | Germany |
| Flush type: | Dual Flush |
| Flush volume: | 4.5L/3L |
| Material: | HDPE (High-Density Polyethylene) |
| Frame compatibility: | Floor Pan |
| Wels rating: | 4 Star |
| Warranty: | 15 years |
